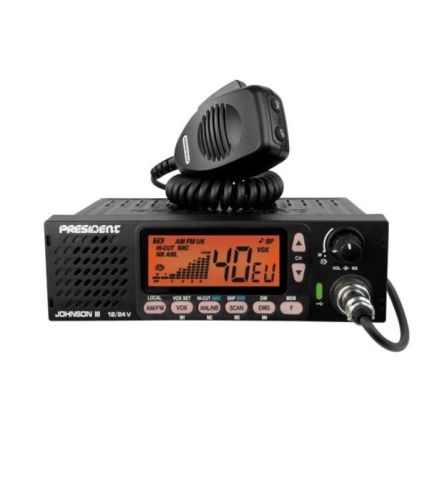

President CB Johnson III AM/FM Multi 12V/24V (400 channels)
Limited stock
Ref.: 03408151

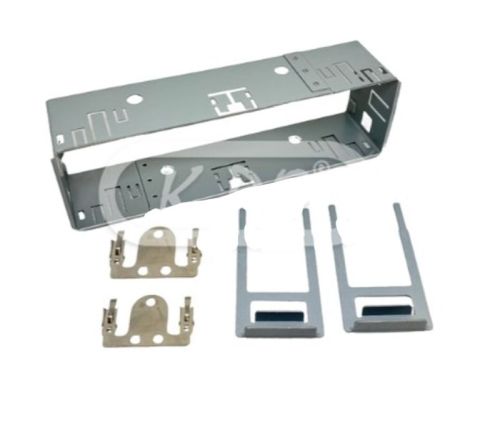

"EU version 4W AM/ 4W FM 400 channels General: ? Number of channels: 400 ? Modulation mode: AM / FM ? Frequency range: from 25.615 MHz to 30.105 MHz ? Antenna impedance: 50 ohms ? Power supply: 13.2 V / 26.4 V ? Dimensions: 170 (W) x 150 (D) x 52 (H) mm ? DIN format ? Weight: 750 grams Transmission: ? Permitted frequency: +/- 300 Hz ? Carrying power: 5,5 W AM / 20 W FM ? Transmission interference: less than 4 nW (- 54 dBm) ? Audio response: 300 Hz to 3 kHz in AM / FM ? Transmitted power in the adjective channel: less than 20 ?W ? Microphone sensitivity: 3.0 mV ? Dissipation: 2 A (with modulation) ? Modulated signal distortion: 1.8 % Description: ? Transceiver CB Mobile ? DIN included ? Larger display than previous Johnson-2 model ? Frequency range: 400 channels ? Standards: 6 European standards ? Modulation mode: AM / FM ? Output power: 4 Watt AM / 4 Watt FM ? Power supply: 12 V / 24 V ? Hands-free option: Built-in VOX ? Microphone: Electret type, 6-pin with President wiring ? Up/down channel selection ? Volume control and ON/OFF ? Manual squelch and ASC ? Multi-function LCD display ? S-meter ? ANL filter, NB and HI-CUT ? Local DX key ? Channels and memory scan ? 3 memories ? F-function key ? Beep function ? Roger beep ? VOX built-in ? AM/FM mode switch ? Dual watch ? Preset 9/19 ? Front Microphone Connection ? External Speaker Connection ? Front Speaker Reception: ? Max. sensitivity at 20 dB sinad: 0.5 ?V ? 113 dBm (AM/FM) ? Frequency response: 300 Hz to 3 kHz in AM/FM ? Adjacent channel selectivity: 60 dB ? Maximum audio power: 3 W ? Squelch sensitivity: minimum 0.2 ?V ? 120 dBm / maximum 1 mV ? 47 dBm ? Frequency suppression: 60 dB ? Center frequency rej. speed: 70 dB ? Dissipation: 400 mA nominal / 1000 mA maximum Package contents: President JOHNSON-3 Power cord with fuse Microphone UP/DOWN and its hanger Mounting bracket with fixing screws DIN frame User Manual in English, French, Spanish and Polish"
